What are the similarities and differences between the Tank 300, Ford Bronco, and Jeep Wrangler?

The biggest difference lies in the front axle design. The Tank 300 and the Bronco use independent front suspension, which provides better handling at high speeds and greater comfort, but tends to be less reliable. The Wrangler, on the other hand, uses a solid front axle, which offers better traction and higher reliability, but compromises high-speed handling and ride comfort.

Traction comparison:

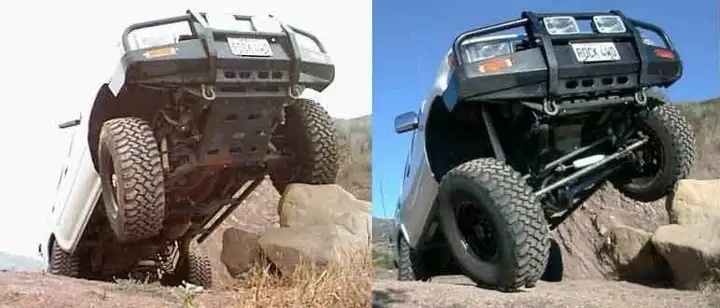

Independent suspension has a shorter travel range and typically provides traction to only three wheels. In contrast, a solid axle can maintain traction with all four wheels. Losing traction on one wheel means losing nearly one-sixth of the total traction—especially when climbing, where the rear wheels bear more of the vehicle’s weight. Additionally, vehicles with independent suspension tend to have less stable body posture during off-road maneuvers.

High-speed traction comparison:

Independent suspension has more moving parts and allows the left and right wheels to move independently within their suspension travel limits. This gives the vehicle better body control and stability at high speeds.

Reliability:

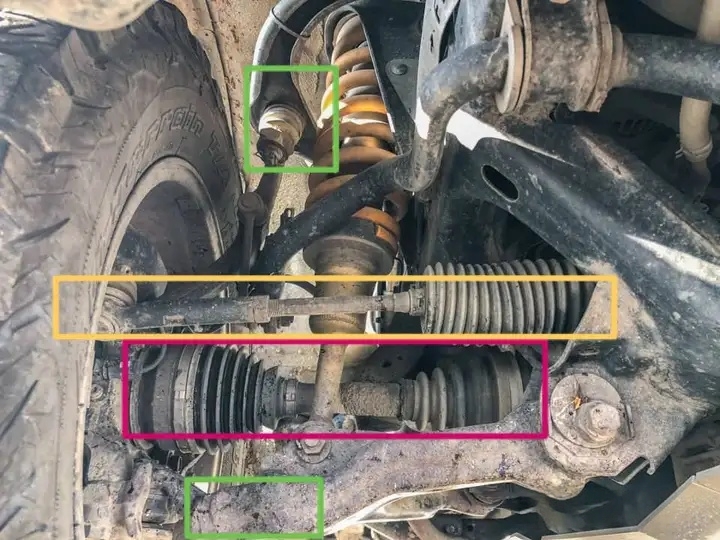

Green parts represent the control arm connection points, which link the chassis to the wheels.

Yellow parts are the steering linkages, responsible for directional control.

Red parts are the drive shafts, which transmit power to the wheels.

This configuration describes an independent suspension system.

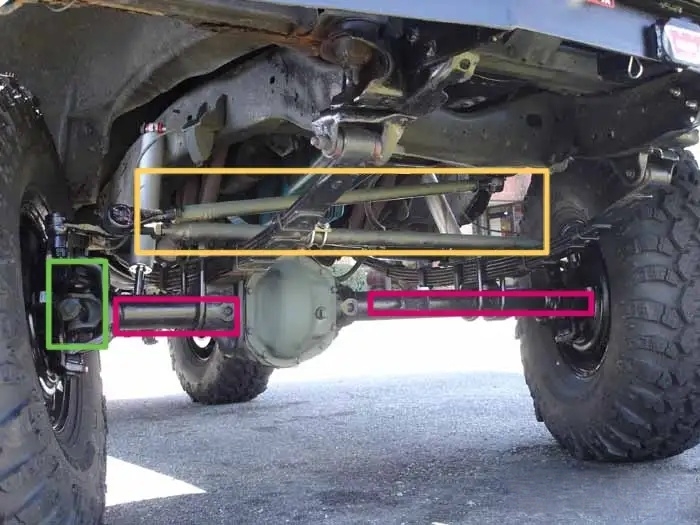

solid axle

Because independent suspension allows each wheel to move up and down freely, the green components (control arm connections) tend to be weaker. Additionally, the driveshafts must operate at varying angles, making them more vulnerable to deformation under high-speed impacts.

In contrast, a solid axle has few moving parts besides the steering system. Since there is no relative movement between the two wheels, the driveshaft is essentially a straight steel rod, resulting in higher structural strength.

Summary:

Independent Suspension:

Offers better comfort for on-road driving, better high-speed off-road handling, improved traction, and lower steering delay.

However, it is relatively fragile during high-speed off-roading and more prone to damage. At low speeds, it also suffers from weaker traction and lower durability.

Solid Axle:

Delivers harsher on-road comfort, less traction at high speeds, and slower steering response, but is much stronger and more durable.

It excels in low-speed crawling, providing better grip and toughness in extreme off-road environments.

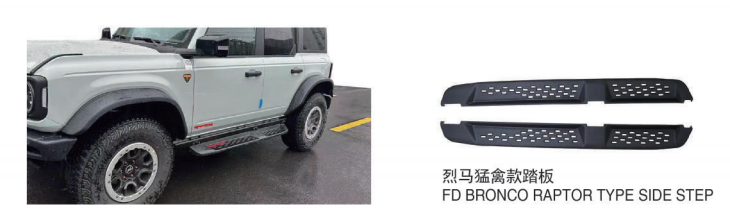

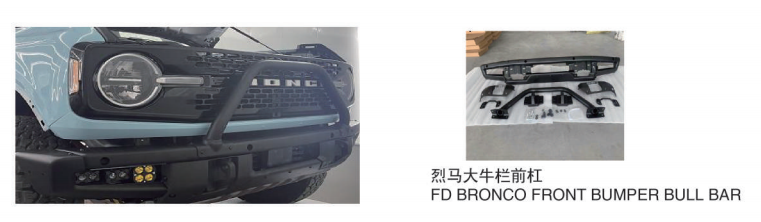

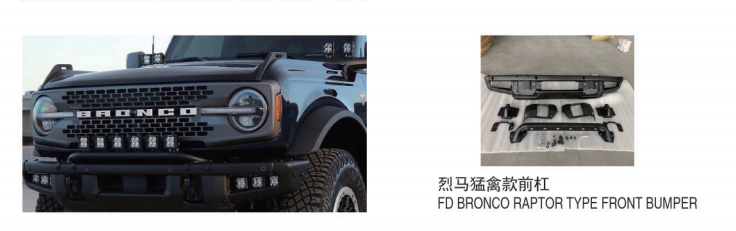

Whether it's the Ford Bronco, Tank 300, or Jeep Wrangler, as true off-road vehicles, they all benefit from a sturdy and stylish front bumper and side steps.
